Description
Delivery is Free Around the Island
Rain Water Tank is not delivered to Rodrigues

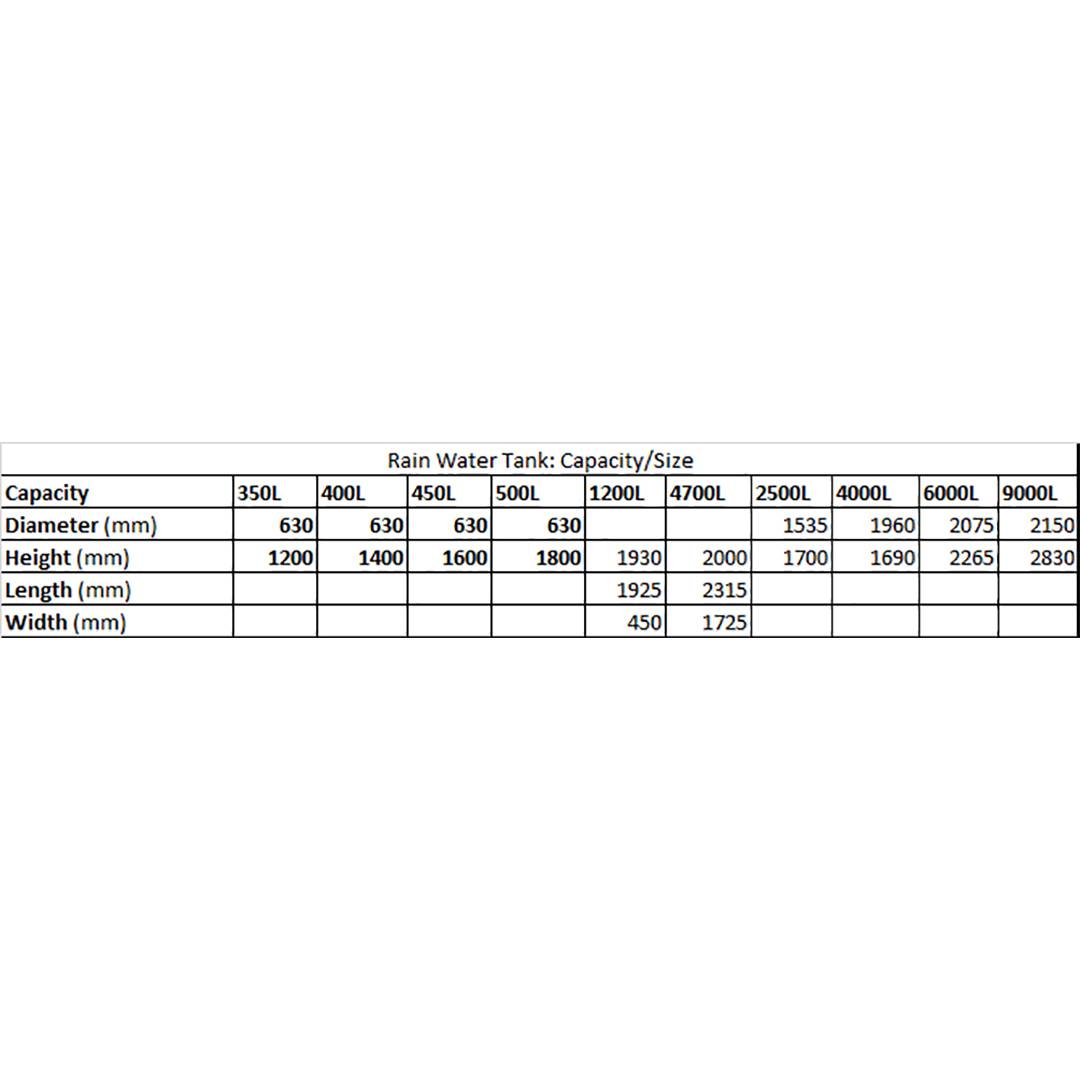

Capacity:

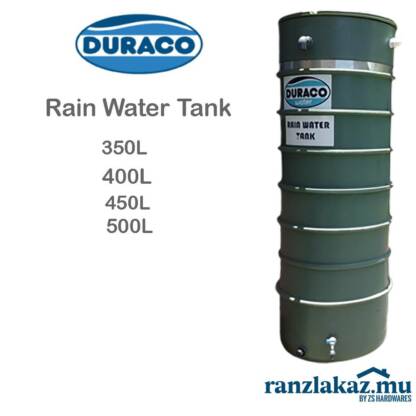

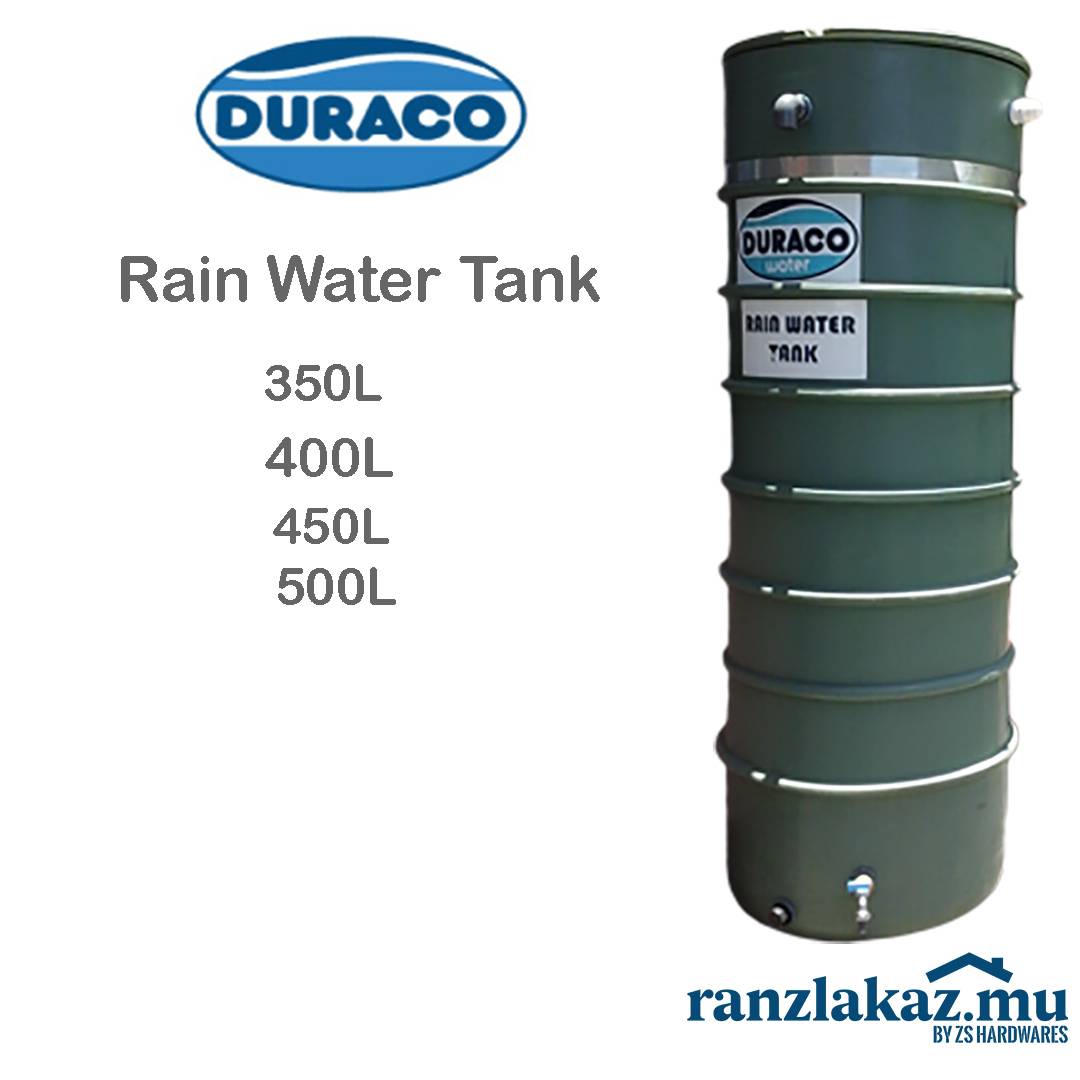

Column Type: 350L, 400L, 450L, 500L

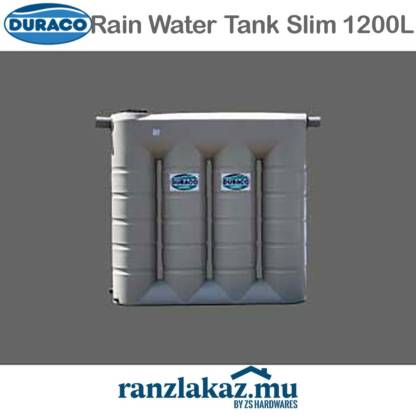

Slim: 1200L

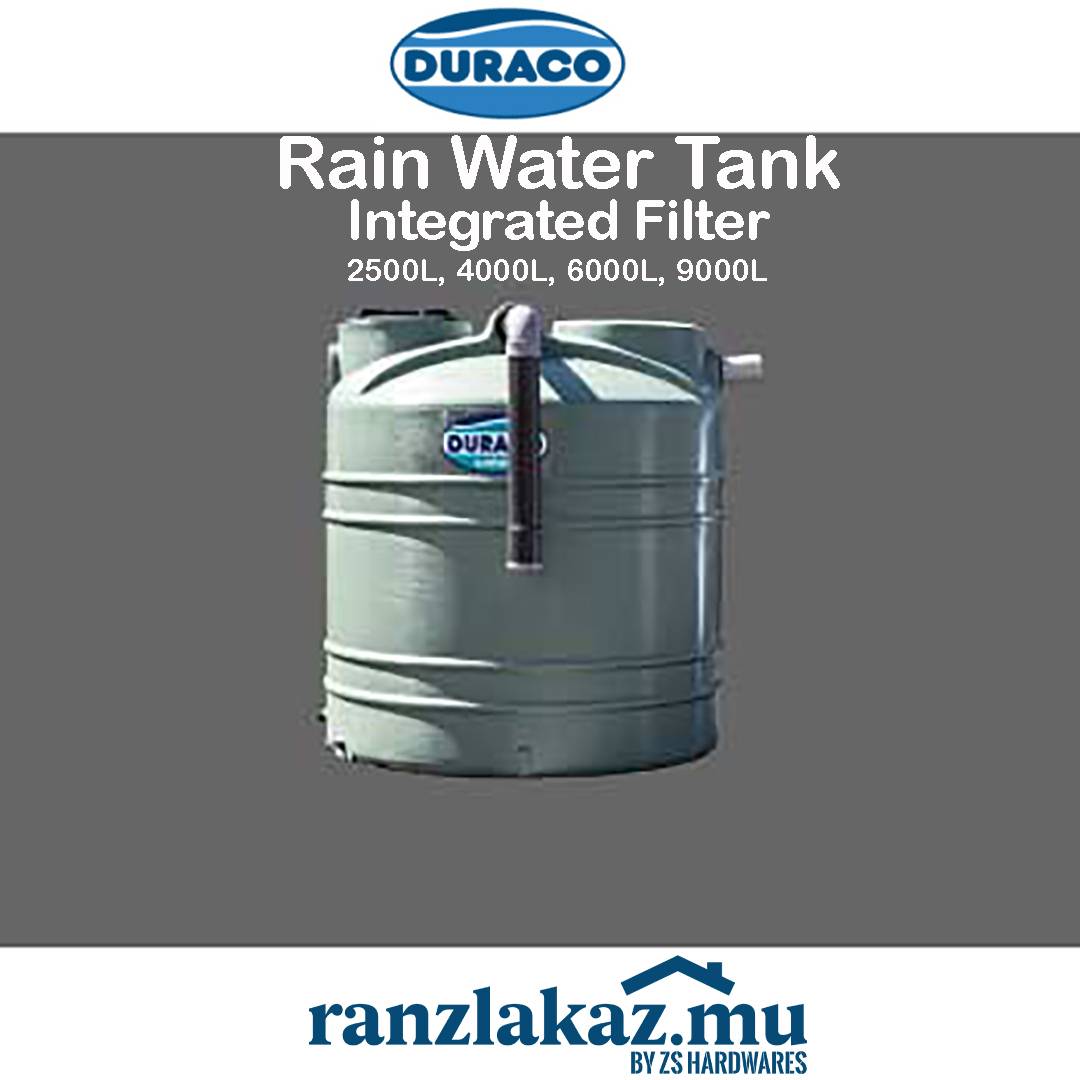

Tank with Integrated Filter: 2500L, 4000L, 6000L, 9000L
Installation Process
Step 1 – Establish Rain water Harvesting Capacity
Determine roof area.
Determine average rainfall per week from
Mauritius Bureau of Meteorology
Calculate tank capacity by multiplying roof area
and average rainfall per week
For example, a roof area of 100 m2 with an average
rainfall of 25 mm yields 2500L (100m2x25mm=2,500L)
Required tank capacity = 2,500L
Step 2 – Based on the capacity of storage, you can
select from the different models available.
Column Type Rain water Tank – 350L to 500L
Integrated Filter Type Rainwater Tank: 2500L to
9000L (Patented model)
Slim Rain water Tank 1200L

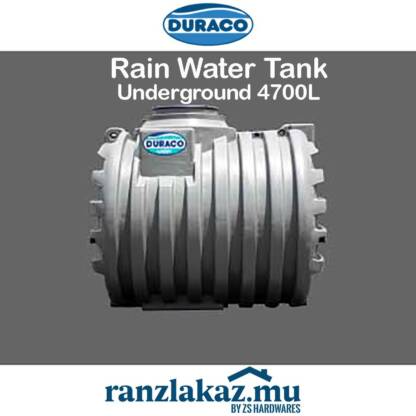

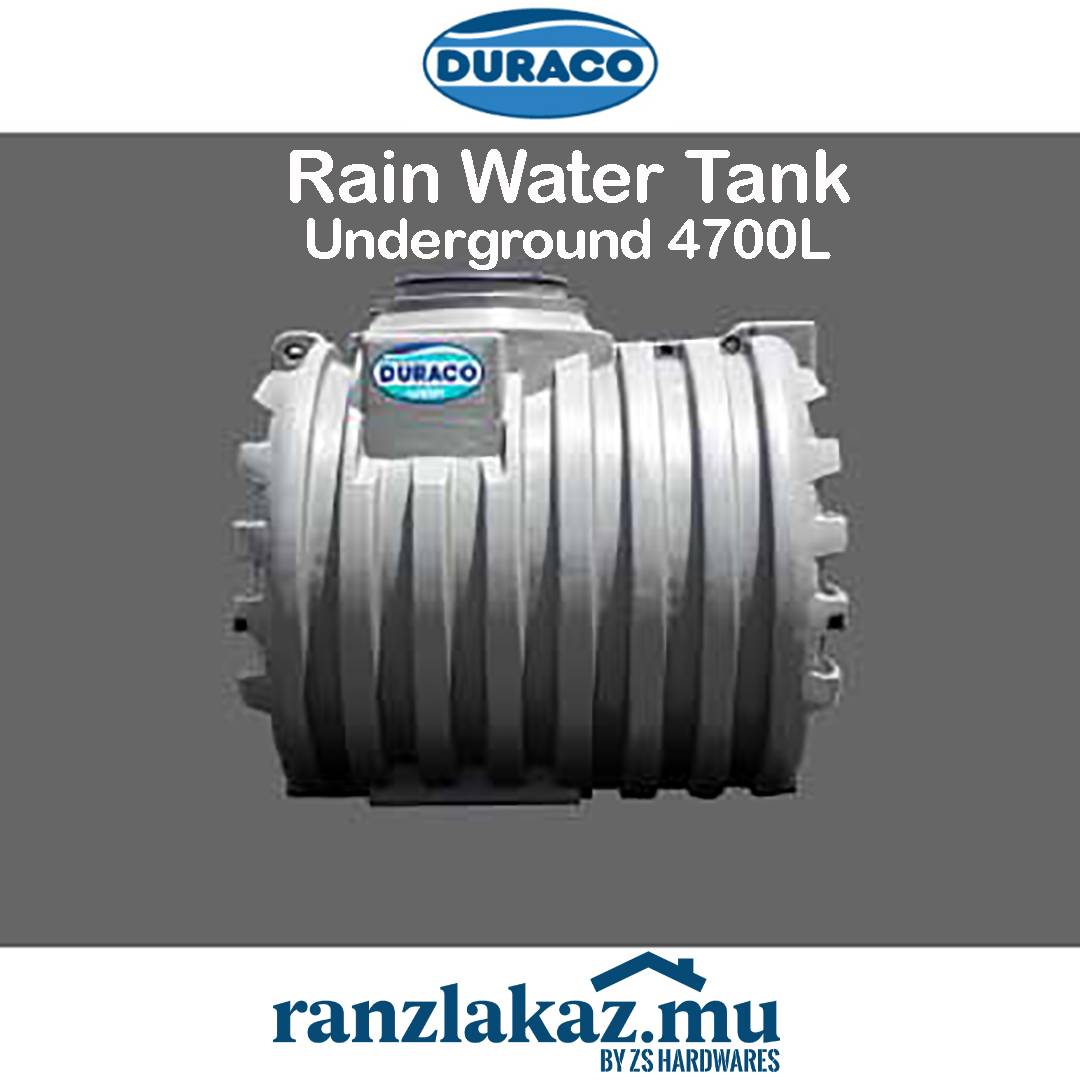

Underground Rainwater Tank – 4700L
Step 3 – Selection of accessories for Rainwater Harvesting
Water pump
Level Indicator
Step 4 – Preparation of Site to accommodate Rainwater Tank.
Ensure the tank is placed on a solid and levelled concrete
base.
The guttering on your roof is also a key component in your
rain harvesting system and will need to be cleared of any
leaves or debris.
Sometimes guttering may also need to be adjusted to direct
the water to the corner of your house where the tank is
installed.
Tank overflows must be designed to ensure storm water
does not pond under the concrete base, the building
floors or flood around foundations and footings of
buildings.
Step 5 – Distribution of the rainwater
Diverts first 60 litres of rainfall to ensure cleaner
supply.
Select a pump and filtration system to distribute
water for use inside or outside the home.
Connect to your washing machine, toilets or outside
gardening tap.
Installation of Water Tanks:
Water Tanks should NOT be installed on:
(i) Rocky and Uneven Surfaces
(ii) Block and Metal Frames.
Best installation practice is to place your tank on a
flat, smooth and even surface.
Warranty:
The Warranty is valid for Twelve years.
The warranty applicable to your Duraco Rainwater tank
(Excluding the Underground Rain Water Tank) is as
follows:
First 4 years – Free replacement or free repair
whichever may be necessary
5 to 6 years – 85% discount off the current retail
price of the water tank or free repair,
whichever may be necessary
6 to 8 years – 70% discount off the current retail
price of the water tank or free repair,
whichever may be necessary
8 to 10 years – 55% discount off the current retail
price of the water tank or free repair,
whichever may be necessary
10 to 12 years – 40% discount off the current retail
price of the water tank or free repair,
whichever may be necessary
Note:
The Duraco company’s obligations under this warranty are
limited to
repair or replacement of the water
tank, at the option of the company
Warranty Exclusions
Accidental damage; acts of God; failure due to misuse;
incorrect installation; attempts to repair the water
tank other than by DURACO Ltée accredited service agent
The warranty only applies to the water tank and does not
cover any plumbing, or fittings supplied by the company
such as float valve, outlet fittings, foot valve in case
of underground tanks and lid.
Any leakage at outlet/inlet resulting from wrong plumbing
installation.
Subject to any statutory provisions to the contrary, claims
for damage to furniture, carpets, foundations or any other
consequential loss either directly or indirectly due to
leakage from the water tanks.
The warranty does not apply to tanks which have been used
for storage of chemicals.
Where the water tank is not installed according to the
instruction below:
Aboveground tanks
All water tanks must be anchored on a smooth flat surface.
No external load should be applied to the tanks.
Inlet and outlet pipes should be adequately supported to
avoid strain on the water tanks.
The warranty period for an underground Rainwater Tank is
3 years.
